Commercial Odour Control Systems

UVC SERIES 1000

Name: PuraAir Australia
Address: NSW, AU
Telephone: 1300 972 736
Price range: 0

High Quality Commercial Odour Control Systems

High Performance

The UVC Series 1000 is PuraAir’s best quality High Performance Commercial Odour Control System. It eliminates unwanted odours and destroys bacteria and viruses by utilising an ultra violet ray UVC germicidal lamp using UV Lamp ozone generating technologies.

Some of the Operational features:

Bacteria & Virus Control
Mould & Fungal Spores Control
Chemical Free
Adaptive Command Control
High Flow Distribution System
Energy Efficient & Low Maintenance
High Quality UV Lamps
Quiet Operation
Uniquely Engineered

BROCHURE

High Quality Features

PuraAir's High performance Commercial Odour Control Systems Series utilise ( UVC) Ultra Violet Germicidal and (UV) Ozone generating lamp technologies...

The high output UVC and UV lamps are of the highest quality, they are manufactured and are guarantee for a continuous long working life of 9000-12000 hours. The lamps are powered by a Smart digital ballast with a pre heat function extending the life of these components. Listed below are the features that support the UVC Series.

The White Powder coated cabinet is easy to clean and is fitted with a flush key lock and durable hinge system complimenting its light weight compact design. The cabinet door is fitted with a safety switch this provides additional protection for personnel. The machine will switch off if the cabinet door is opened while operating.

The LED Light indicator panel displays the system settings and indicates when the lamps are due for replacement, while the Ozone Source indicates the ozone level currently in operation.

The ACC (Adaptive Command Control) is adjusted to achieve the correct ozone levels to suit each customised application. This function is available while using the remote-control option or can be adjusted at the time of installation or when servicing the system.

The auxiliary socket provides the option for a remote control allowing easy adjust to settings.

Optional Ozone Safe Monitoring system is available for advanced installation requirements.

The HFADS (High Flow Air Distribution System) is exclusive to PuraAir UVC Series. The HFADS the maintenance free turbine blower has been designed for high output with whisper quiet operation. The 25mm outlets delivers a high volume of ozone to ensure the effective odour control. The turbine blower combines the HFADS and is engineered to manage the cooling of the equipment within the cabinet while eliminating odours and cleaning the air at the same time.

The modular design is easy for service and maintenance.

Our 12 months Manufacturer’s Warranty includes parts and labour and is backed by PuraAir`s stand in replacement guarantee. This ensures piece of mind that if the warranty repairs are not possible on site at the time of assessment then we will provide the equivalent system for your odour control.

Please note:

This diagram only represents one of the many uses for this product.

Air Sanitation Process

The air sanitation process begins with the continuous filtering of the airborne dust particles in the air through active carbon filters drawing in the unwanted odours from the area that is being treated. When the odour is drawn in through the filters they enter the UVC germicidal light chamber where the odour control process begins. The micro-organisms come in contact with the UVC germicidal light wave, it then changes their DNA and destroys them by a process called irradiation.

The advanced stage of the air sanitation process is when ozone (O3) is produced by the UV light waves. It is distributed by a high flow air distribution system to the area that needs to be treated. For example, in a high-rise garbage chute application the O3 is delivered into the garbage chute and bin where the odour originates; here the building’s garbage chute’s natural up draft carries O3 from the bottom to the top destroying bacteria and viruses. This, therefore, eliminates and prevents the unwanted odours from entering the building’s residential or common areas to provide a sanitised environment.

Natural Oxidation

Ozone is a unique molecule that seeks out and destroys unwanted odours; it rapidly oxidises them by depositing the third oxygen atom onto the unwanted odour particles; this process effectively destroys viruses and bacteria - neutralising odour and reverting itself back to 02 (oxygen).

This is called oxidation; a process that, in fact, occurs naturally in our air.

Why Choose Us

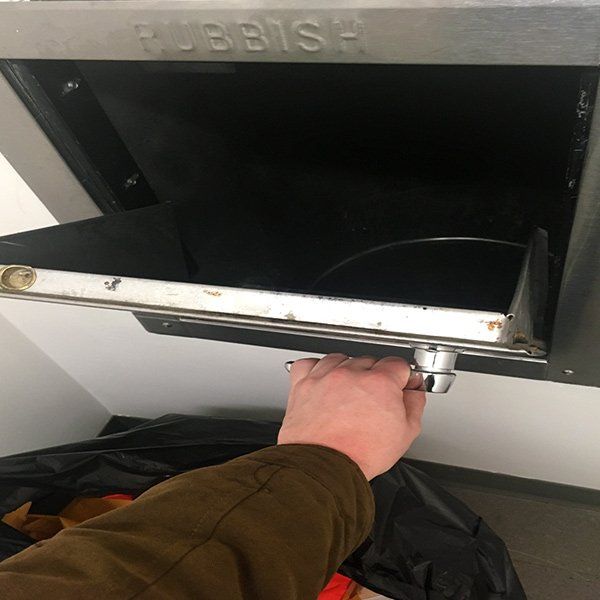

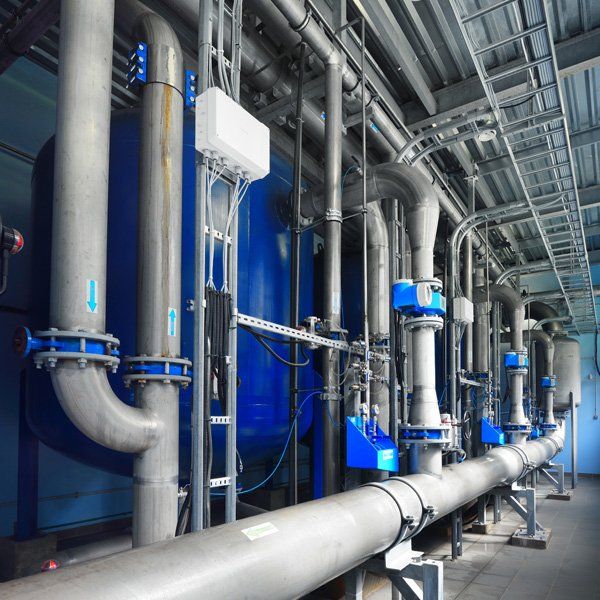

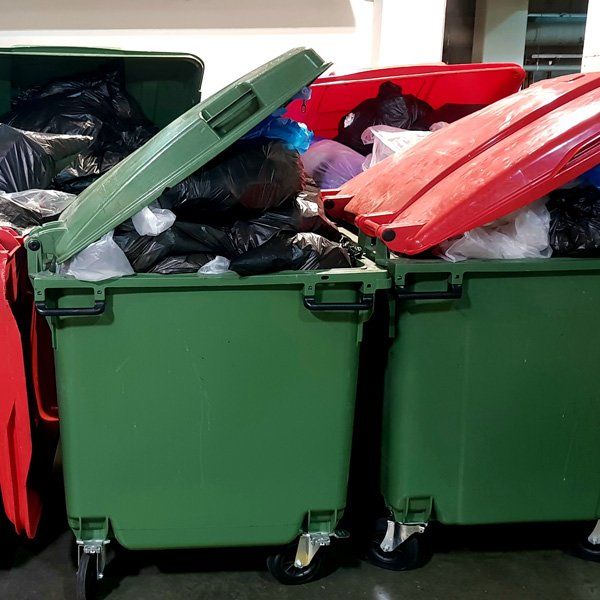

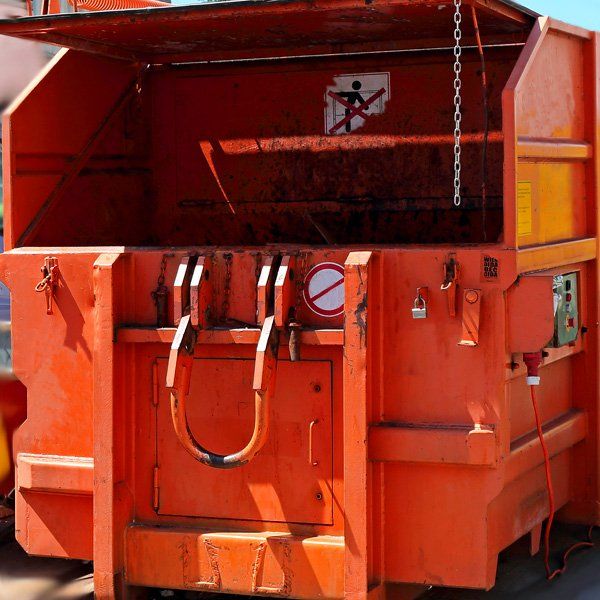

Our air sanitation products are designed and engineered specifically for controlling odours in environments such as: High-rise apartment garbage chutes | Garbage compactors systems | Garbage bin collection areas | Grease trap rooms | Waste water rooms | Wet food waste areas | Customised to suit your application.

Benefit from the Best Quality Products, Solutions and Reliable Services offered by PuraAir Australia.
